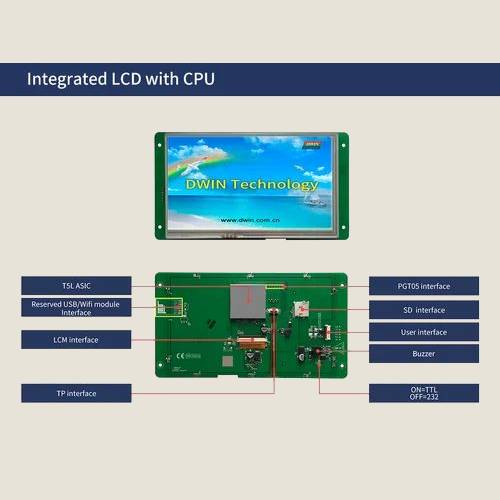

DWIN HMI TN, 7 inch Resistive Touch TFT HMI Display
| Display Resolution | 800x480 |
| RAM | 128Kbytes |
| Brightness | 250nits |
| Usage/Application | Medical devices, Automation products |
| Operating System | Built-in DGUS II intelligent software |
| Phase | Single Phase |
| Backlight Color | White |
| Flash Memory | 16Mbytes |
| Brand | DWIN |
| Display Size | 7inch |
| Mounting Type | Panel Mount |
| Model Name/Number | DMG80480C070_03WTR |
| Type of Communication | UART4:Mode is determined by Jumper:(be used after OS configuration) ON=N81/E81/O81/N82, 3.3V&5V TTL/ |
| Touch Screen Type | Resistive Touch Screen |
| SD Card Slot | Yes |
Chip on film (COF) is a new technology aggressively developed by liquid crystal display (LCD) module manufacturers. COF is a potential replacement method for tape-automated bonding (TAB) and chip-on-glass (COG) technology
This DWIN 7 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Such as a button, slider, Graph, Text Display, etc on their own.
User can Develop their own UI Using DWIN TN, Resistive touch 7 inch COF display the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB color and 16.7M color. It is also equipped with 300 nit brightness which makes it visible in daylight too.
It is compatible with All micro-controller Boards like Arduino, Raspberry and many more… which can be interface with I2C communications.
