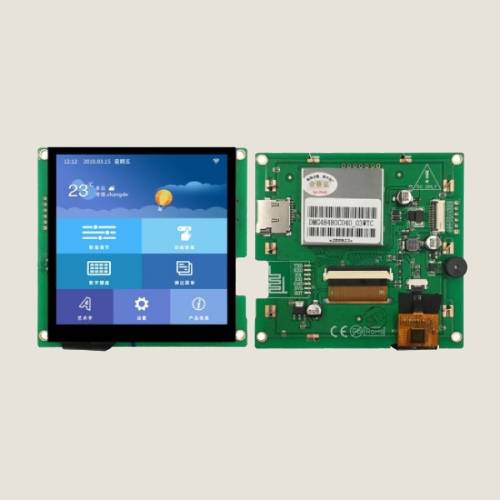

DWIN HMI LCD 4 T5L DGUSII LCM, Capacitive Touch, IPS Screen, Serial UART Intelligent Control, 480*480, 250nit, DMG48480C040_03WTC
2,527.56
This model is the intelligent LCD display module with a capacitive touch screen for user interactivity. It has onboard serial UART PORT which can be controlled by any microcontroller via a simple yet powerful command set. It can be used as TFT Display & Touch controller in various electronic equipment such as vending machines, currency counting machines, washing machines, and many other similar appliances.
?Specifications
| Model | DMG48480C040_03WTC |
| LCD Type | IPS |
| Touch Panel | Capacitive Touch Panel |
| Resolution | 480*480 |
| Display Size | 4 inches |
| Brightness | 250nit |
| Interface | UART |
| Operational Voltage | 4.5V to 5.5V |
| Typical Current | 70mA to 220mA |
| Dimensions | 90.6 x 86.1 x 13.4 (in mm) |
* GST & Freight Extra at actual
Please confirm before payment
