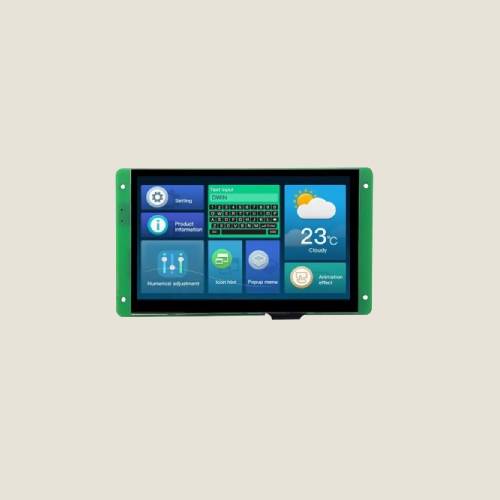

DWIN 7inch Smart HMI TFT LCD, Non Touch, TV-TN TFT 800x480 200nit LCD Display, DMG80480C070_04WN

This is a DWIN 7inch Smart HMI TFT LCD, Non Touch, TV-TN TFT 800x480 200nit LCD Display, DMG80480C070_04WN. The Dwin 7inch Non touch TFT Display comes with 262k Colors with 200nit brightness, Which Support 16MBytes NOR Flash, for fonts, pictures and audio files.

Features

• Based on T5L0, running DGUS II system, commercial grade.;
• 7.0-inch, 800*480 pixels resolution, 262K colors, TV-TN-TFT-LCD.
• No touch screen
• TTL/CMOS interface; 10Pin_1.0mm connection wire;
• Download via SD card or on-line serial port;
• Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required;
• Dual Development System:DGUS?/TA(Instruction set);
• TV viewing angle, 70°/70°/40°/30°?L/R/U/D?;
• With GUI&OS dual-core,GUI with rich controls,DWIN OS kernel is open to the user for the second-development,via DWIN OS language or KELI C51.

• GST & Freight Extra at actual

  Please confirm before payment
