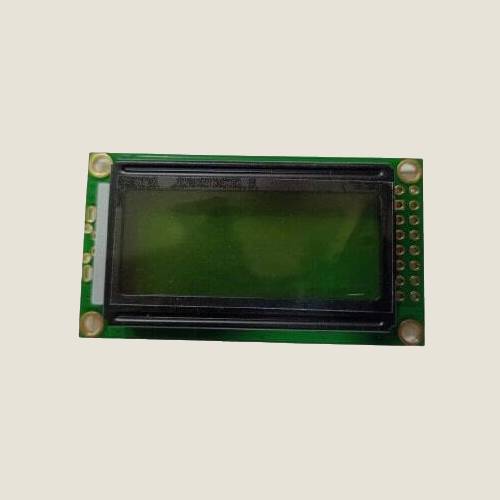

8X2(S) Yellow/Green LCD Display

8X2(S) Yellow/Green LCD Display is an 8 character by 2 lines 8x2 character LCD display. It is available in no backlight or with LED backlight options. This 8x2 LCD module is available in various LCD panel colors including grey, yellow/green and blue LCD options. This LCD module is built in with AIP31066 controller (or equivalent).  It has different language fonts as options, there are English/Japanese, English/Western European, English/ Eastern European, English/Scandinavian European, English/Cyrillic (Russian), and Hebrew/Arabic.

Get the high-quality 8X2(S) Yellow/Green LCD Display at the best price in India.

8X2(S) Yellow/Green LCD Display Features:-

• LCD Type: STN, Y/G , Positive Transmissive
• Operating Voltage: VDD- 5V, Vop- 4.70V
• Viewing Direction: 6 O'clock
• Drive Method: 1/16Duty, 1/5 Bias
• Operating Temp: -20 c- +70 c
• Storage Temp: -30 c to + 80C
• Connector Type: Zebra
• Driver IC: AIP31066
• Backlight: Yellow Green

8X2(S) Yellow/Green LCD Display Mechanical Specifications:-

• Module Dimension 58.0 x 32.0 x 13.2 max.
• Viewing Area 38.0 x 16.0
• Dot Size 0.56 x 0.66
• Dot Pitch 0.60 x 0.70
• Mounting Hole 53.0 x 27.0
• Character Size 2.96 x 5.56
• Unit:- mm
